Aluminum composite panel
(ACM) is an excellent new material incorporating lightness,
rigidity and flatness, as well as the functions of insulation
and sound-blocking which protects the building, and a design to
express the building's features.
 Aluminum
composite panel (ACM) is the best functional product developed
to the creativity, and integrity.

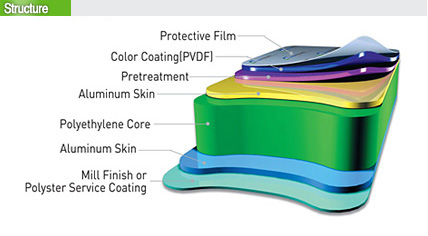

This
special panel is a sandwiched structure hot-joined between two sheets
of corrosion-resistant aluminum plate (O.5mm), which is a non-toxic
high polymer polyethylene (PE) resin or mineral core.
Aluminum
composite panel (ACM) is outstanding for its lightness, rigidity
and flatness and will not exert extra force on the interior or exterior
of the wall. Its functions of insulation and sound-blocking help
protect the building, while its design features help to truly express
the building's characteristics.
According to the area to which
it is applied, it can also function as a decorative material which
is usable for the ceiling, colume and information board
|
Characteristics
ot Aluminum composite panel (ACM)
|
01.
Excellent Color Uniformity
Aluminum composite panel (ACM)
is applied by roll-coating and provides excellent high-tech color
uniformity.
02. Lightness
& Rigidity
Aluminum composite panel (ACM) has a specific
gravity of 1.2 - 1.5 and a weight equal to that of a thin plate
of aluminum. It is rigid yet easily worked due to its extreme lightness.
03.
Superior Flatness
Aluminum composite panel (ACM) is extremely flat and improves
upon the twisting and bending that usually occurs in the appearance
of other metal plates.
04.
Corrosion Resistance and Durability
Through the best treatment
of the surface, the panels prevents corrosion and have the specific
ability to endure weather temperatures ranging between -50°C
~ +80°C.
05. Superior
Fabrication
Processes including cutting, bending, grooving,
and curving are machine-tooled for both aluminum and wood. and the
panels have particular ease in processing.
06.
Superior Maintenance
As it can be used with Kynar 5OO paint
for PVDF coating, it has a strong chemical resistance. Smoke, gas
and dust that accumulates on the surface of the panel can be easily
washed off with water mixed with a synthetic detergent using a sponge.
The initial unique color is therefore easily maintained.
▶

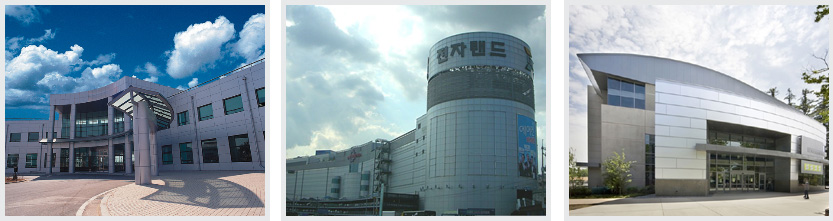

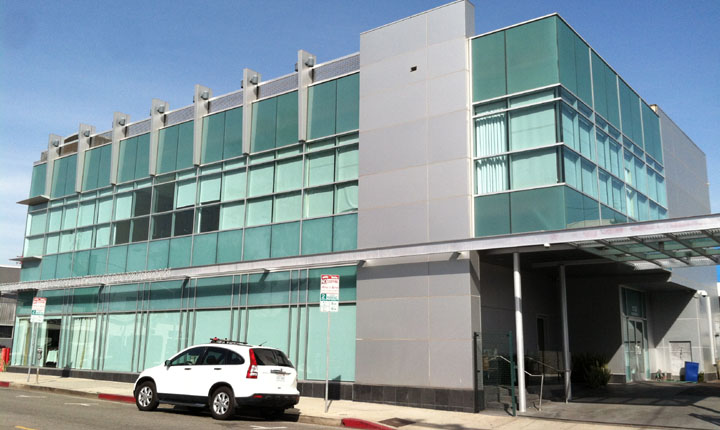

Business Building in Irvine ▶ Shopping Mall in Seoul, Korea
▶ Sports Center in Seoul, Korea

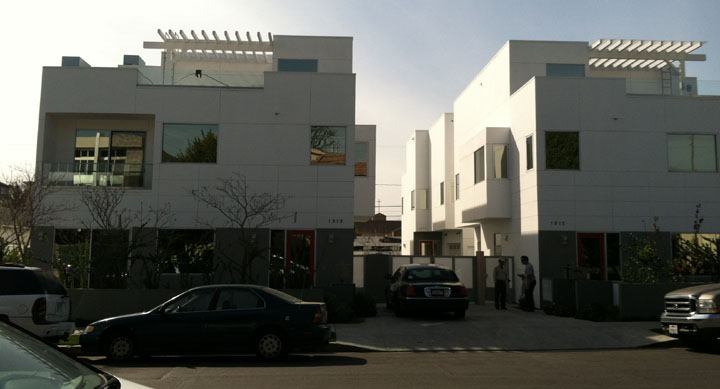

▶ Stylish Condominium Buildings in Mar Vista
▶ Building in Santa Monica
|
